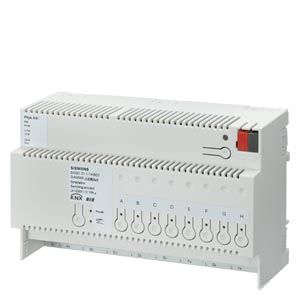

N 511/02 - Выключатель нагрузки N 511/02, 8х230V AC 16A, для установки на DIN-рейку, 8 ТЕ Siemens

Обзор

.

Функции

N 511/02

Выключатель нагрузки N 511/02, 8х230V AC 16A, для установки на DIN-рейку, 8 ТЕ

• One relay contact per output as switching element
• Rated operating voltage of relay contact: 230 V AC
• Rated current of relay contact: 16 A, p.f. = 1
• Integrated power supply for the electronics, connected to 230 V AC
• Push button to switch between bus operation and direct operation
• Yellow LED to indicate direct operation activated
• 1 red LED per output to indicate the switching state
• One push button per output to switch the output via a toggling function in direct operation mode, functional if 230 V AC present, (even if bus voltage absent or interrupted or bus communication not yet activated)
• Selection whether outputs are to be configured identically or individually
• Operation mode selectable for each output (normal mode, time switch mode)
• Selectable switching behaviour for each output (NO contact/NC contact)
• Adjustable On and Off delay times
• Selectable logic operation (AND/OR) for two communication objects and variable start value of the logic operation at bus voltage recovery
• Selectable additional night mode object for each output for time-limited switching on of the illumination at night
• Adjustable On period for night or time switch operation mode
• Selectable warning signal prior to imminent switching-off by means of three-times short off and on switching (flashing) at night or time switch operation mode
• Possibility to add one additional status indication object per output for status reporting
• Sending of status objects on request and/or automatically after a change
• Integrated 8-bit scene control and linking of each output into up to 8 scenes
• Unchanged switching state of all outputs if there is a power failur
• Adjustable switching state per output after mains voltage recovery
• Integrated bus coupling unit
• Bus connection both via bus terminal and contact system to a data rail
• Only half a standard bus load
• Rail-mounted device for mounting on rail TH 35 according to DIN EN 60715

Технические данные

Дальнейшая информация

Дополнительная информация:
The optional data rail must be ordered separately. See chapter System Products and Accessories - data rails.
