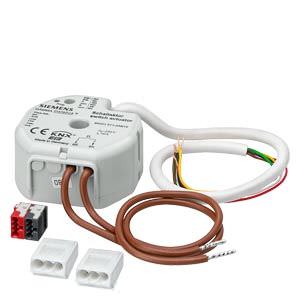

UP 5.. - Switch actuator Siemens

Обзор



Name

ID

Описание продукции

UP 511/10

5WG1511-2AB10

Выключатель нагрузки UP511/10, комбинированный: актуатор/бинарный вход произвольного монтажа, 1х230V AC 16A, 2 безпотенциальных входа

UP 562/31

5WG1562-2AB31

Выключатель нагрузки N 562/231, комбинированный, 2х230V AC 6A, 2 безпотенциальных входа, для произвольного монтажа



Функции



UP 5..

Switch actuator

  • Rated contact voltage AC 230 V
  • 2 binary inputs for potential-free contacts
  • 20 cm long wires for connecting phase conductor, output, inputs and bus
  • Output to be configured as NO or NC contact
  • Selectable preferred output state at bus voltage failure and recovery
  • Switching status object
  • Selectable additional functions:


  • On/off delay
  • Time-switch
  • Logic operation, function forced positioning


  • Selectable function of the binary inputs:


  • Acting as secondary inputs directly on the switching outputs or acting as independant binary inputs with bus communication
  • Free allocation of the functions switching, dimming, solar protection control, send value and scene control to the inputs
  • Two independent switching objects per input
  • Blocking object for each input
  • Separately selectable behaviour per input at bus voltage recovery
  • Telegram rate limitation for both inputs


  • Integrated bus coupling units, bus-powered electronics
  • Enclosed bus terminal for bus connection
  • Installation in a flush-mounting wall or ceiling box with ø 60 mm

Технические данные



Dimension (ø x H)

53 x 28 mm
