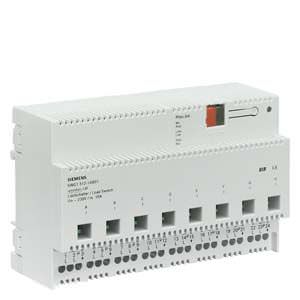

N 512..01 - Load switch Siemens

Обзор



Name

ID

Описание продукции

N 512/01

5WG1512-1AB01

Выключатель нагрузки N 512, 8х230V AC 16A, для установки на DIN-рейку, 8 ТЕ

N 512C01

5WG1512-1CB01

Load switch, 8 x AC 120 V / AC 277 V / AC 347 V‚ 20 A, C load (cUL listed)



Функции



N 512..01

Load switch

  • 8 Floating relay contacts
  • Switching contacts can also be operated manually via slide switches
  • Can be inverted per output (NO contact/NC contact)
  • Configurable timer mode with configurable on/off delay
  • Logic operation (AND/OR) of two communication objects and adjustable start value of operation in the event of bus voltage recovery
  • Status object
  • Positively driven operation
  • Switching option on bus voltage failure and bus voltage recovery
  • Bus-powered electronics
  • Integrated bus coupling units, Bus connection via bus terminal or contact system to data rail
  • Modular installation devices for mounting on TH35 EN 60715 mounting rail

Технические данные



Ширина в единицах DIN

8 MW
