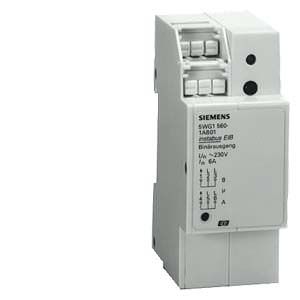

N 562/01 - Выключатель нагрузки N 562/01, 2х230V AC 6A, для установки на DIN-рейку, 2 ТЕ Siemens

Обзор

.

Функции

N 562/01

Выключатель нагрузки N 562/01, 2х230V AC 6A, для установки на DIN-рейку, 2 ТЕ

• One potential-free relay contact per output
• Rated voltage 230 V AC
• Rated current 10 A at p.f. = 1
• Selectable programs for the independent switching on/off of electrical loads, either with direct operation or with forced control, with status objects
• Operation as time switch or with on/off delay
• Logic operation (AND/OR) of two communication objects for channel A
• Selectable relay operating mode (NC contact / NO contact)
• Control of an electro thermal valve actuator or electrical heating
• Monitoring of the room temperature controller
• Adjustable characteristics of thermal drive (valve opened or closed for isolated drive)
• Communication objects for reception of up to three window contact data per channel and closing of the valve if the window is open
• Communication object for the reception of a frost alarm signal per channel
• Activation of the heating to 50 % of the On period (corresponds to a half-opened valve) if a frost alarm is received and on failure of communication with the room temperature controller
• Configurable output state in case of bus voltage failure and bus voltage recovery
• Bus-powered electronics
• Integrated bus coupling unit, bus connection via contact system to data rail
• Modular installation devices for mounting on TH35 EN 60715 mounting rail

Технические данные

Дальнейшая информация

Дополнительная информация:
The data rail must be ordered separately. See chapter System Products and Accessories - data rails.
