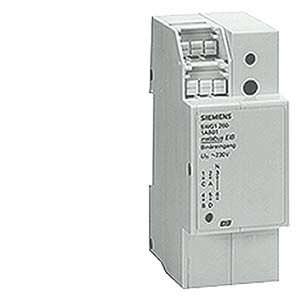

N 26../01 - Binary input device Siemens

Обзор



Name

ID

Описание продукции

N 260/01

5WG1260-1AB01

Двоичный вход N 260, 4X230В

N 261/01

5WG1261-1AB01

Binary input device, 4 x AC/DC 24 V

N 261C01

5WG1261-1CB01

Binary input device, 4 x AC/DC 24 V (UL listed)



Функции



N 26../01

Binary input device

  • Max. cable length, unshielded, twisted 100 m
  • Configurable function per single input:


  • Switching state/send binary value
  • Switch edge, switching on short / long pulse
  • 8-bit value edge


  • Configurable function per pair of inputs:


  • 2-pushbutton dimming with stop telegram, 2-pushbutton shutter/blind control


  • Transmission of the input objects after a change of status
  • Configurable cyclic transmission of the input objects
  • Bus-powered electronics
  • Integrated bus coupling units, bus connection via contact system to data rail

Технические данные



Ширина в единицах DIN

2 MW



Дальнейшая информация



Дополнительная информация:
The data rail must be ordered separately. See chapter System Products and Accessories - Data rails.
