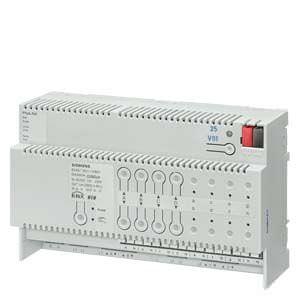

N 501/01

Модуль управления N 501, для жалюзи, комбинированный актуатор жалюзи/двоичный вход, выходы 4х230V AC 6A, 8 безпотенциальных входов, на DIN-рейку, 4 ТЕ

• 8 inputs for DC or AC in the range from 12 to 230 V
• 8 relay contact outputs locked in pairs against each other for controlling 4 × AC 230V sunblind drives
• Contact rated voltage AC 230 V
• Contact rated current 6 A, p.f. = 1
• Electronics powered by a 230 V AC integrated power supply
• Device functional even without bus connection or if the bus communication fails
• Preset on delivery for direct output control for each blind button function via momentary contact switches connected to the inputs
• Green LED to indicate standby
• Key for switching between bus and direct mode
• Yellow LED for indicating direct mode activated
• Button for each relay contact output, for switching the output in direct mode while the button is held down
• LED per input to indicate the relevant signal status
• Selectable function for each input when using the ETS:

• Switching status, send binary value
• Switching on leading edge, switching Short/Long
• 1-pushbutton dimming, sunblind control, group control
• 1-bit/8-bit scene control
• 8-bit/16-bit value leading edge, Short/Long
• 16-bit floating point value leading edge, Short/Long

• Or for each pair of inputs:

• Acting directly on the corresponding outputs as blind button
• 2-button dimming with stop telegram or with cyclical sending
• 2-pushbutton sunblind control

• Selectable blocking of each input via a corresponding blocking object
• Sending of input objects after change
• Selectable cyclical input object sending
• Individual or shared configuration of actuator channels
• Communication objects for each blind channel for driving the sun protection into the end positions or for stopping the procedure and adjusting the blind slats in steps
• Communication objects for setting position of slats and blinds in percentage information
• Automatic opening of the blind slats to a preconfigured nominal setting after uninterrupted driving down of the blind from the top to the bottom end position, with integrated 1-bit scene control for storing and calling up (reproduction) of 2 interim blind and slat settings
• Integrated 1-bit/8-bit scene control, 8 scenes can be integrated per channel
• Optional "Sun" object for integration in a sunlight tracking control system
• Differentiation between automatic and manual mode and with automatic switchover from automatic to manual mode for the channel in question by pressing a bus button for manual control of the corresponding sun protection
• Manual mode taking precedence over automatic position commands
• Optional central command for each device or each channel for switching the relevant channels to automatic mode and driving the sun protection into the up or down end position
• Alarm: move to safety position, Locking in this position for as long as alarm is active
• Travel lock (e. g. for cleaning the outer shutter/blinds)
• Status objects for each channel for querying or for automatic sending of sun protection and slat settings as a percentage value
• Optional status objects for reporting that the up or down position has been reached
• Integrated bus coupling unit
• Bus connection via bus terminal or contact system to data rail
• Modular installation devices for mounting on TH35 EN 60715 mounting rail

Технические данные

Дальнейшая информация

Дополнительная информация:
The optional data rail must be ordered separately. See chapter System Products and Accessories - data rails.
