N 527/.., N 528/.. - Universal Dimmer, expansions, (R,L,C load) Siemens

Обзор



Name

ID

Описание продукции

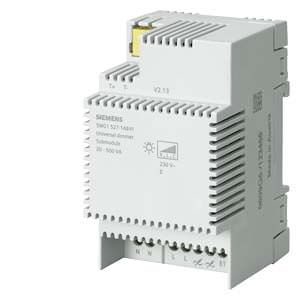

N 527/41

5WG1527-1AB41

Диммер N 527/41, модульный (дополнительный модуль), 500VA, автоподстройка под характер нагрузки, для установки на DIN-рейку, 4 ТЕ

N 527/51

5WG1527-1AB51

Диммер N 527/51, модульный (дополнительный модуль), 1000VA, автоподстройка под характер нагрузки, для установки на DIN-рейку, 4 ТЕ

N 528/41

5WG1528-1AB41

Диммер N 528/41, модульный (дополнительный модуль), 300VA, автоподстройка под характер нагрузки, для установки на DIN-рейку, 4 ТЕ



Функции



N 527/.., N 528/..

Universal Dimmer, expansions, (R,L,C load)

  • One output for switching and dimming resistive, inductive or capacitive loads
  • Interface for connecting the universal dimmer submodule to the universal dimmer main module and / or connecting further universal dimmer submodules
  • Rotary switch for adjusting the device (output) address to B...F
  • Selectable objects and adjustable operation mode of each device (output) as well as for the main module via the main module’s application program
  • Automatic adjustment to leading edge or trailing edge control, depending on the type of load
  • Electronics powered via an integrated power supply unit, for supply voltage 230 V AC
  • Integrated 8-bit scene control and integration of each output in up to 8 scenes
  • Selectable mode for each output (normal mode, one- or two-level timer mode, blinking)
  • Electronic protection of the output against overload, short circuit and temperature rise
  • 2 subsidiary inputs for 230 V AC (with neutral line as reference potential) for connecting 2 conventional pushbuttons for direct switching and dimming of the output and with selectable additional transmission of these switching and dimming commands via the bus
  • Length of connecting lines on the subsidiary inputs up to 100 m
  • Determination of switching state by means of the voltage generated in the device

Технические данные



Ширина в единицах DIN

3 MW
