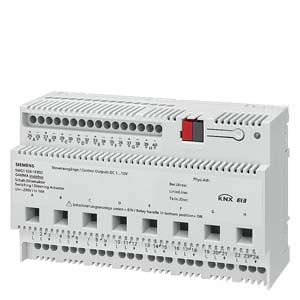

N 526E02 - Диммер/выключатель N 526/E02, 8 выходов, по 8хDALI или 8xEVG на каждый выход, для установки на DIN-рейку, 4 ТЕ Siemens

Обзор



.

Функции



N 526E02

Диммер/выключатель N 526/E02, 8 выходов, по 8хDALI или 8xEVG на каждый выход, для установки на DIN-рейку, 4 ТЕ

  • For switching and dimming of eight mutually independent groups (channels) of fluorescent lamps with dimmable electronic control gear (ECG)
  • 8 control voltage outputs 1...10 V DC
  • Control power min. 60 OSRAM ECG dynamic each
  • 8 switching outputs (relay contacts) for 230 V AC, 50/60 Hz, 16 A at p.f. = 1
  • Each of them for connection of min. 30 OSRAM ECG dynamic for 58 W fluorescent lamps
  • Slide switch per relay output for manual operation and switch position indication
  • Selection between identical or individual configuration of all channels
  • Command objects for each actuator channel for switching on/off, dimming brighter/darker and set/value
  • One 1-bit and one 8-bit-status object (switching state and dimming value) per output
  • Per channel configurable time-limited activation of the lighting during night mode (base lighting)
  • Warning 30 seconds prior to imminent switch off by dimming to 50 % of the previous dimming value for each channel with time-limited operation
  • Switching on or off of a channel by dimming brighter/darker
  • Configurable dimming value upon switching on
  • Jumping or dimming to a new dimming value
  • Configurable dimming time from 0...100%
  • Integrated 8 bit scene control and assignment of each output to up to 8 scenes
  • Transmission of status objects on request, cyclically and/or automatically after changes
  • Configurable behaviour on bus voltage failure and recovery
  • Bus-powered electronics
  • Integrated bus coupling unit, bus connection via bus terminal or contact system to data rail
  • Modular installation devices for mounting on TH35 EN 60715 mounting rail

Технические данные



Ширина в единицах DIN

8 MW

Описание

TPI: Switch/dimming actuator N 526E02



Дальнейшая информация



Дополнительная информация:
The data rail must be ordered separately. See chapter system products and accessories - data rails.
