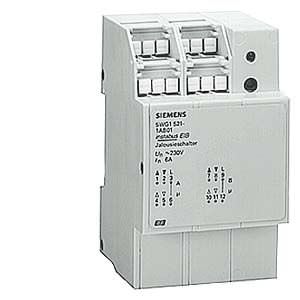

N 521/01

Модуль управления жалюзи N 521, 4х230V AC 6A, для установки на DIN-рейку, 4 ТЕ

• 2 channels
• For the separate control per actuator channel of a sun protection‚ damper‚ door or window drive with a motor for AC 230 V and electromechanical limit switches
• Integrated isolating relay function for connection of 2 drives per channel
• Electrically interlocked relays (for reversing direction of rotation)
• Rated contact voltage AC 230 V, 50 Hz
• Rated contact current 6 A
• Configurable behavior in the event of a bus voltage failure
• Alarm (Wind, Rain, Frost): Move to safety position, locking in this position for as long as alarm is active
• Shared configuration of actuator channels
• Adaptation of objects and functions to drive type
• Sun protection control (up/down)

• Using position data (8-bit value)
• Travel to end position, stopping, stepwise adjustment

• Slat control (open/closed)

• Using position data (8-bit value)
• Travel to end position, stopping, stepwise adjustment sun protection control (up/down) and slat control (open/close)

• Bus-powered electronics
• Integrated bus coupling units
• Bus connection via bus terminal or contact system to data rail
• Modular installation devices for mounting on TH35 EN 60715 mounting rail

Технические данные

Дальнейшая информация

Дополнительная информация:
The data rail must be ordered separately. See chapter System Products and Accessories - data rails.
