UP 254K.. - Temperature controller, DELTA style Siemens

Обзор



Name

ID

Описание продукции

UP 254K13

5WG1254-2KB13

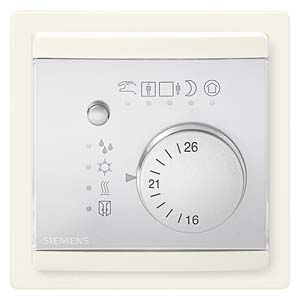

Temperature controller, titanium white/metallic silver

UP 254K43

5WG1254-2KB43

Temperature controller, platinmetallic



Функции



UP 254K..

Temperature controller, DELTA style

  • Integrated room temperature sensors
  • Control can be set as a two-point control and/or continuous-action control (P or PI algorithm), for heating only, for cooling only, or for heating and cooling mode
  • Operating modes that can be switched via KNX: comfort mode, pre-comfort mode, energy-saving mode and frost or heat protection mode
  • Presence pushbutton to locally switch between comfort and pre-comfort mode or comfort and energy-saving mode and to extend comfort mode after operating energy-saving or protection mode
  • Pushbutton for switching over between manual and automatic mode
  • The room temperature setpoint value for comfort mode can be set via an interchangeable rotary button (+/-) on the controller and via the KNX
  • Basic setpoint of the room temperature for comfort mode which can be set via the KNX
  • Setpoint value for comfort mode in °C which can be set via an interchangeable rotary button on the controller
  • Adjustable dead zone between the heating setpoint and the cooling setpoint for comfort mode
  • Two-level heating or cooling
  • Output of the control variable(s) either as an on/off switch command or as a positioning command in the range of 0...100 %
  • 5 LEDs to display manual mode and the current operating modes
  • 4 LEDs to display heating/cooling valve open, dew point alarm and open window
  • For plugging onto a bus transceiver module (BTM) or a flush-mounting actuator with bus transceiver module (BTM)

Технические данные



Размеры (Ш х В х Г)

68 x 68 x 16 мм
