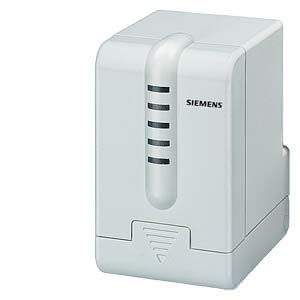

AP 562/02 - Electromotive valve actuator with LED valve position indication Siemens

Обзор

.

Функции

AP 562/02

Electromotive valve actuator with LED valve position indication

Electromotive, proportional (constant) valve actuator with LED valve position indication and with integrated bus coupling unit for direct connection to KNX:

• For latching to valve adapter
• Delivery with valve adapter rings suitable for Siemens (VDN../VEN.., VPD../VPE.., VD...CLC, V..I46.., V..P47..) Danfoss RA, Heimeier, MNG, Schlösser ab 3/93, Honeywell, Braukmann, Dumser (distribution board), Reich (distribution board), Oventrop, Herb, Onda
• Max. positioning force: 120 N
• Cable permanently connected to the enclosure for bus connection and two additional signaling contacts (e. g. window contacts), which can be connected as binary inputs
• For operation solely with the bus voltage, i. e. without external auxiliary power
• Maintenance-free, silent drive
• Automatic valve stroke detection, through which the actuator travel is adjusted to the valve used

Технические данные
