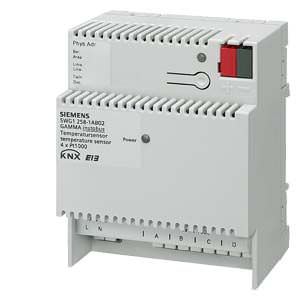

N 258/02 - Измеритель температуры N 258 многоканальный, для измерения температуры с четырёх зондов Pt1000, блок питания 220В Siemens

Обзор

.

Функции

N 258/02

Измеритель температуры N 258 многоканальный, для измерения температуры с четырёх зондов Pt1000, блок питания 220В

• For four Pt1000 sensors
• For the measurement and transmission of 4 temperatures in the range -40...+150 °C
• For connection of four Pt1000 temperature sensors2), each via a 2-wire cable up to 50 m in length
• Configurable smoothing of a measured value through mean value generation
• Monitoring of a lower and upper limit value for each measured value, with configurable hysteresis for limit value signals
• Electronics powered via an integrated power supply unit for 230 V AC
• Green LED for displaying ready-to-run status
• Integrated bus coupling units
• Bus connection via bus terminal or contact system to data rail
• Modular installation devices for mounting on TH35 EN 60715 mounting rail

Технические данные

Дальнейшая информация

Дополнительная информация:
The accompanying physical sensors must be ordered separately. See chapter Physical sensors - sensors without KNX connection.
The data rail must be ordered separately. See chapter System Products and Accessories - data rails.
