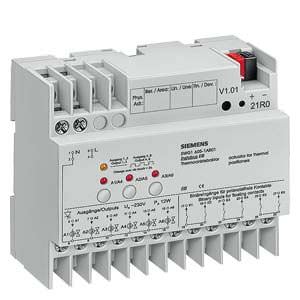

N 605/.. - Thermal drive actuator Siemens

Обзор



Name

ID

Описание продукции

N 605/01

5WG1605-1AB01

Модуль управления приводами N 605/01, для управления термоэлектрическими приводами клапанов, 6 входов 6 выходов, крепление на DIN-рейку, 8 ТЕ



Функции



N 605/..

Thermal drive actuator

  • Can be operated with instabus Room temperature controllers
  • Direct operation (local operation), LED for operation/status display
  • Rated voltage 230 V AC, 6 silent semiconductor switch
  • Electronic protection of outputs against overload and short circuit
  • 6 signal inputs (floating contacts), Determination of switching state by means of the voltage generated in the device, max. 50 m cable length, unshielded, twisted
  • Funktionen Ausgänge: Switching (on/off per channel), Configurable transmission of input status objects
  • Configurable behavior in the event of a bus voltage failure/recovery
  • Electronics powered via an integrated power supply unit for supply voltage 230 V AC
  • Integrated bus coupling units, Bus connection via bus terminal
  • Modular installation device for mounting on TH35 EN 60715 mounting rail

Технические данные



Ширина в единицах DIN

6 MW
