S 290/11

Датчик S 290/11, открытия окна/двери герконовый, цвет белый

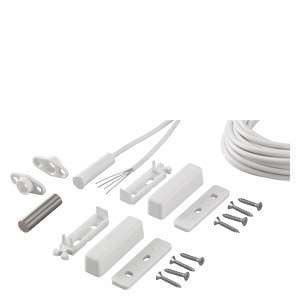

  • Opening alarm for the monitoring of windows and doors, comprising:


  • 1 magnet (ø 8 x 30 mm)
  • 1 magnetically operated contact in a fully cast plastic enclosure (ø 8 x 30 mm)
  • Switching voltage: max. 110 V DC
  • Switching current: 10...100 mA
  • Contact current carrying capacity: max. 5 W
  • Contact resistance: max. 150 mW
  • VdS-class B
  • 5 m long connection cable LiYY 4 x 0,14 mm2


  • Suitable for flush and surface mounting
  • 2 surface-mounting enclosure tops (43 x 12 x 12 mm)
  • 2 surface-mounting enclosure bottoms
  • 4 spacer plates (thickness: 2 x 4 mm or 2 x 2 mm)
  • 2 flush-mounting flanges
  • 4 antimagnetic countersunk self-tapping screws DIN 7982-ST2, 9 x 16-A2

Технические данные



Размеры (Ш х В х Г)

43 x 12 x 12 мм

Описание

BMA: Door/window contact S 290 w/br
