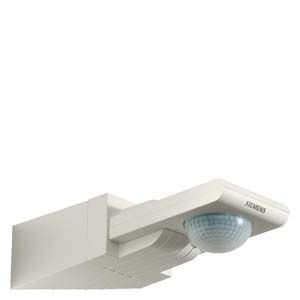

AP 251.. - Motion detector Siemens

Обзор



Name

ID

Описание продукции

AP 251/11

5WG1251-3AB11

Датчик движения АР 251/11, уличный, настенный, угол 290 град., IP44, титановобелый

AP 251/21

5WG1251-3AB21

Датчик движения АР 251/21, уличный, настенный, угол 290 град., IP44, антрацит



Функции



AP 251..

Motion detector

  • To detect and report motion, optionally with or without a brightness threshold taken into consideration
  • Sensing angle 290°, including masking to limit the capture zone, range at least 16 m (radius) with mounting height 2...4 m and at 22 °C
  • Integrated infrared receiver to set brightness threshold and delay time, as well as operating mode (test mode, standard mode, pulse mode) via an infrared remote control
  • Blocking and release of reporting mode through a communication object
  • Bus-powered electronics
  • Integrated bus coupling units, Bus connection via bus terminal
  • Device for wall or ceiling mounting
  • Degree of protection IP 55 zur Montage auch im Außenbereich

Технические данные



Размеры (Ш х В х Г)

180 x 86 x 74 мм
