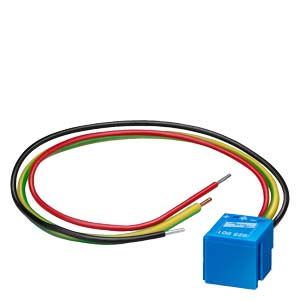

S 190/01

Устройство защиты DEHN ,защита шины от перенапряжения, до 320 вольт

  • For the overvoltage fine protection of bus devices
  • For inserting in a bus device instead of a 193 bus terminal or for direct connection to a bus terminal
  • For surge protection through connection of the yellow/green ground conductor to the next grounding point
  • 2 socket contacts (1 mm ∅) for insertion in bus devices
  • 2 solid wires (0.8 mm ∅) for connection to the bus terminal
  • A solid wire (0.75 mm2) for surge protection
  • Rated voltage 24 V DC
  • Rated current 6 A
  • Rated discharge surge current 5 kA
  • Protection level 350 V

Технические данные



Размеры (Ш х В х Г)

11.6 x 10.5 x 11.1 мм

Описание

TPI: Overvoltage protection
