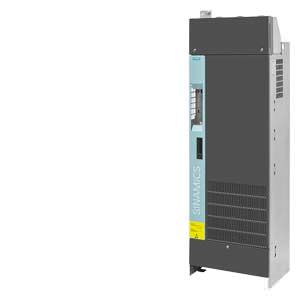

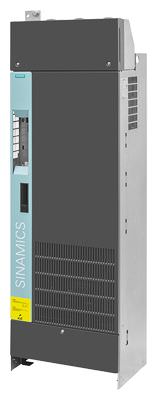

PM330 Power Module, degree of protection IP20, frame size GX

PM330 Power Modules have been specifically developed for driving pumps, fans and compressors with quadratic characteristic for use in HVAC applications. They have a connection to an external Braking Module (1-quadrant applications). The Power Modules can be installed very flexibly in customer-specific cabinets with the associated system components.

The PM330 Power Modules produce only low apparent power losses. In addition to the energy-related advantages, environmental stressing is also reduced.

To reduce emissions, the PM330 Power Modules are equipped with a radio interference suppression filter as standard (in accordance with the limit values defined in Category C3). The PM330 Power Modules equipped with a line filter also meet the limits for use in the first environment (Category C2) as specified in EN 61800‑3 1).

The PM330 Power Modules are designed for connection to grounded TN/TT systems and non-grounded IT systems.

PM330 Power Modules do not support Control Units with Safety Integrated. Safety functions can be implemented by means of external switching devices.

1) To comply with Category C2, shielded cables must also be used between the inverter and motor with a maximum permissible cable length of 100 m. Longer cables can be used if output reactors and output filters are connected (see section Load-side power components).

Характеристика



Derating data

The PM330 Power Modules and the associated system components are rated for an ambient temperature of 40 °C and installation altitudes of up to 1000 m above sea level. At ambient temperatures of > 40 °C, the output current must be reduced. Ambient temperatures above 50 °C are not permissible.

At installation altitudes > 1000 m above sea level, it must be taken into account that the air pressure, and therefore air density, decreases as the height increases. As a consequence, the cooling efficiency and the insulation capacity of the air also decrease. Due to the reduced cooling efficiency, it is necessary, on the one hand, to reduce the ambient temperature, and on the other hand, to lower heat loss in the built-in unit by reducing the output current.

As additional measure for installation altitudes from 2000 m up to 4000 m, an isolating transformer is required in order to reduce transient overvoltages according to EN 60664‑1.

Automatic adjustment of pulse frequency

In the factory setting, the drive starts with a pulse frequency of 4 kHz and reduces the pulse frequency automatically to the associated required frequencies when loaded. When the load decreases, the pulse frequency is increased automatically up to 4 kHz. The values of the rated current apply to a pulse frequency of 2 kHz and an ambient temperature of 40 °C and are reached at any time by the automatic adaptation of the output pulse frequency.

Current derating as a function of the installation altitude

Permissible output current as a function of the installation altitude for PM330 Power Modules, frame size GX

Permissible output current as a function of the installation altitude for PM330 Power Modules, frame size HX

Note:

The connected motors and power elements must be considered separately.

Current derating as a function of the ambient temperature

Low overload (LO) and high overload (HO) for PM330 Power Modules

Note:

The operating temperature ranges of the Control Units must be taken into account (see technical specifications of Control Units).

Current derating as a function of the line voltage

The PM330 Power Modules supply a constant power over the full permissible range of line voltage.

Rated power as a function of the line voltage

The constant power results in current derating as a function of the line voltage.

PM330 Power Module

Rated output current Irated

At 380 ... 400 V

380 V

400 V

415 V

460 V

480 V



A

%

%

%

%

%

6SL3310-1PE33-0AA0

300

100

100

96.6

86.2

81.6

6SL3310-1PE33-7AA0

370

100

100

96.9

87.8

83.7

6SL3310-1PE34-6AA0

460

100

100

96.4

85.4

80.6

6SL3310-1PE35-8AA0

585

100

100

96.9

87.8

83.7

6SL3310-1PE36-6AA0

655

100

100

96.4

85.4

80.6

6SL3310-1PE37-4AA0

735

100

100

96.6

86.6

82.1



Operating ranges

An additional dimensioning aid is available for all inverters with a PM330 Power Module. The purpose of this aid is to ensure the constant reliable operation of the inverter, in particular with regard to service life expectancy.

The dimensioning aid clearly distinguishes between continuous operating ranges and short-time operating ranges. As a result, due consideration can be given to operating ranges when the plant is configured. For further details, please refer to the diagram below and the explanatory text.

Continuous operation (green area) permissible.

Short-time operation (yellow area) permissible for 2 % of the total operating period without significant reduction in the inverter service life; no overload reaction triggered by the thermal monitoring model.

Sporadic short-time operation (red area) permissible for only very short, rare operating states lasting less than 0.1 % of the total operating period without significant reduction in the inverter service life; no overload reaction triggered by the thermal monitoring model on condition of compliance with the duty times specified in the diagram.

Overload capability

PM330 Power Modules have an overload reserve e.g. to handle breakaway torques. If larger surge loads occur, this must be taken into account when configuring. In drives with overload requirements, the appropriate base-load current must, therefore, be used as a basis for the required load.

The unit can operate in two different duty cycles in the permissible continuous operating range shown in the diagram (green area). Depending on how the system is dimensioned, the relevant base-load current is effective as a rated quantity.

The criterion for overload is that the drive is operated with its base-load current before and after the overload occurs on the basis of a duty cycle duration of 300 s.

The base-load current for a low overload IL is the basis for a duty cycle of 110 % for 60 s or 135 % for 3 s.

The base-load current IH for a high overload is based on a duty cycle of 150 % for 60 s.

Overload capability, low overload

Overload capability, high overload

Интеграция



The PM330 Power Modules have the following connections and interfaces:

  • PM‑IF interface to connect the PM330 Power Module to the Control Unit. The PM330 Power Module also supplies power to the Control Unit using an integrated power supply.
  • Motor connection and line supply connection via screw studs
  • DC-link connection for Braking Module
  • PE (protective earth) connections
  • Terminal block X9
    • Input for external 24 V DC supply
    • Input for external alarm/fault
    • Input for EMERGENCY OFF / EMERGENCY STOP
    • Control of the main contactor
    • "DC link charged" enable signal

PM330 Power Modules communicate with the Control Unit via the PM-IF interface.

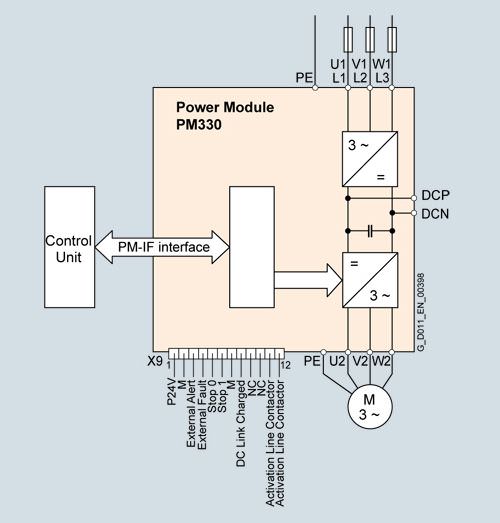

Connection diagram for PM330 Power Module

Power components that are available depending on the Power Module used

The following line-side power components, DC link components and load-side power components can be ordered additionally in the appropriate frames size for the Power Modules:

PM330 Power Module

Frame size GX

Frame size HX

Line-side power components

Line filter

✓

✓

Line reactor

✓

✓

DC link components

Braking Module with braking resistor

✓

✓

Load-side power components

Output reactor

✓

✓

dv/dt filter plus VPL

✓

✓

dv/dt filter compact plus VPL

✓

✓



Чертеж

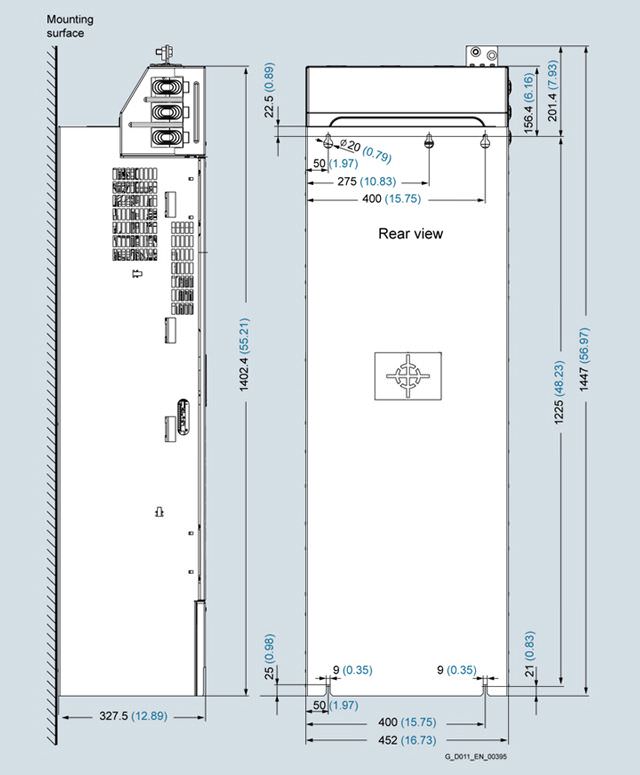

Principle dimension drawing and drill pattern for PM330 Power Modules, frame size GX

Secured with M8 bolts

Ventilation clearance required at top and bottom: 200 mm (7.87 in)

Ventilation clearance required at sides: 30 mm (1.18 in)

Ventilation clearance required at front: 30 mm (1.18 in)

The PM330 Power Modules are designed for installation in a control cabinet.

All dimensions in mm (values in brackets are in inches).

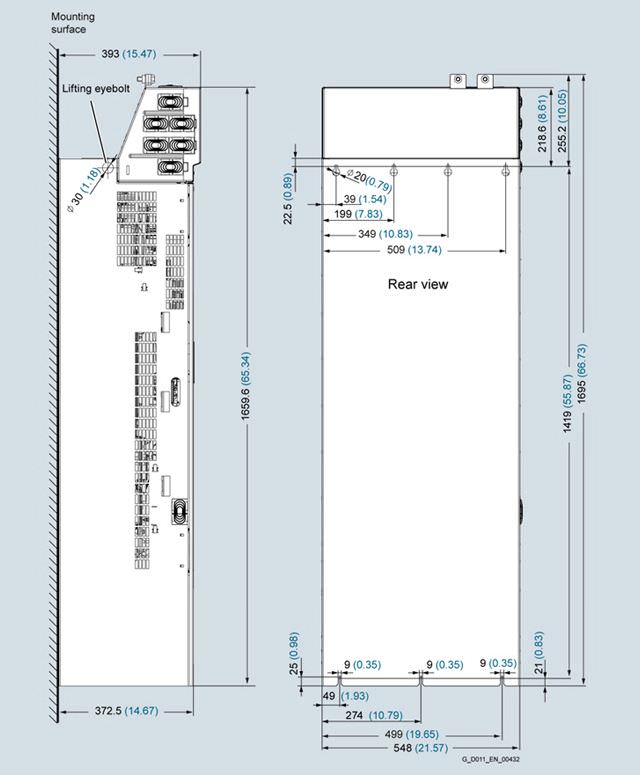

Principle dimension drawing and drill pattern for PM330 Power Modules, frame size HX

Secured with M8 bolts

Ventilation clearance required at the top: 200 mm (7.87 in)

Ventilation clearance required at the bottom: 250 mm (9.84 in)

Ventilation clearance required at sides: 30 mm (1.18 in)

Ventilation clearance required at front: 100 mm (3.94 in)

The PM330 Power Modules are designed for installation in a control cabinet.

All dimensions in mm (values in brackets are in inches).

Технические данные



General technical specifications



PM330 Power Modules

Input data

Line voltage

380 ... 480 V ±10 % 3 AC

Starting current

< rated input current (refer to power-dependent data)

Input frequency

47 ... 63 Hz

Grid requirement
Short-circuit power RSC

>33 line reactor required

Output data

Output voltage

0 V 3 AC … ≤ (line voltage × 0.97)

Output current

See power-dependent data

Output frequency

0 ... 100 Hz

Pulse frequency

Self-adjusting up to 4 kHz

Power factor λ

0.75 ... 0.93

Offset factor cos φ

0.96

Further technical specifications

Overvoltage category

to IEC 61800‑5‑1

  • Overvoltage category III: Supply circuits
  • Overvoltage category II: Non-supply circuits

Braking methods

  • DC braking
  • Dynamic braking with external Braking Module with braking resistor

Type of cooling

Forced air cooling AF to EN 60146

Protection functions

  • Undervoltage
  • Overvoltage
  • Overcurrent/overload
  • Ground fault
  • Short-circuit
  • Stall protection
  • Motor blocking protection
  • Motor overtemperature
  • Inverter overtemperature/fan failure
  • Parameter locking
  • Detection of single-phase motor cable break
  • Line phase failure

Standards

Compliance with standards

cULus (File No.: E192450), CE, C-Tick, GOST‑R (EAC), KC

CE marking

According to EMC Directive No. 2004/108/EC and Low-Voltage Directive No. 2006/95/EC

RI suppression

According to EMC product standard for variable-speed drives EN 61800‑3, "second environment".
Can be operated in the "first environment" if line filters are installed.



PM330 Power Modules

Line voltage 380 ... 480 V 3 AC

PM330 Power Modules



6SL3310-1PE33-0AA0

6SL3310-1PE33-7AA0

6SL3310-1PE34-6AA0

6SL3310-1PE35-8AA0

6SL3310-1PE36-6AA0

6SL3310-1PE37-4AA0

Rated power 1)















  • Based on the base-load current IL















  • At 400 V/50 Hz

kW

160

200

250

315

355

400

  • At 460 V/60 Hz

hp

200

250

300

400

450

500

  • Based on the base-load current IH















  • At 400 V/50 Hz

kW

132

160

200

250

250

315

  • At 460 V/60 Hz

hp

150

200

200

300

300

350

Output current

at 50 Hz 3 AC















  • Rated current Irated (400 V ±10 %)

A

300

370

460

585

655

735

  • Rated current Irated (480 V ±10 %)

A

245

308

369

487

526

602

  • Base-load current IL (400 V ±10 %) 2)

A

290

360

450

570

640

720

  • Base-load current IL (480 V ±10 %) 2)

A

240

302

361

477

515

590

  • Base-load current IH (400 V ±10 %) 3)

A

240

296

368

468

491

551

  • Base-load current IH (480 V ±10 %) 3)

A

196

247

295

390

394

452

  • Max. output current Imax

A

392

486

608

770

864

972

Rated pulse frequency

kHz

2

2

2

2

2

2

Input current 4)















  • Rated current Irated (400 V ±10 %)

A

317

375

469

597

668

750

  • Rated current Irated (480 V ±10 %)

A

262

314

376

497

536

614

  • Base-load current IL (400 V ±10 %) 2)

A

307

365

459

585

654

735

  • Base-load current IL (480 V ±10 %) 2)

A

257

308

368

486

525

602

  • Base-load current IH (400 V ±10 %) 3)

A

254

300

375

477

501

562

  • Base-load current IH (480 V ±10 %) 3)

A

210

251

301

397

402

461

  • Max. input current

A

415

493

620

785

881

992

Short-circuit current rating per IEC, in conjunction with the specified fuses

kA

100

100

100

100

100

100

Rated short-circuit current SCCR (Short Circuit Current Rating) in accordance with UL508C (up to 600 V), in conjunction with the specified fuses

kA

100

100

100

100

100

100

Minimum short-circuit current 5)















  • For 3NE1 fuses

A

4400

5200

6300

9000

10000

12000

  • For 3NA3 fuses

A

9500

14000

20000

20000

30000

30000

Efficiency η

At rated current Irated (400 V/40 °C)



0.98

0.98

0.981

0.981

0.98

0.981

Power loss

At rated current Irated (400 V/40 °C)

kW (hp)

3.642

4.414

5.125

6.791

7.687

8.385

Coolant requirements

m3/s (ft3/s)

0.21

0.21

0.21

0.36

0.36

0.36

Coolant



of air

of air

of air

of air

of air

of air

Sound pressure level LpA (1 m)

dB

74

74

74

74

74

74

Power requirement 24 V DC supply

A

0.5

0.5

0.5

0.5

0.5

0.5

Line supply connection

U1/L1, V1/L2, W1/L3



M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

  • Conductor cross section, max. (IEC)

mm2

2 × 240

2 × 240

2 × 240

4 × 240

4 × 240

4 × 240

Motor connection

U2, V2, W2



M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

  • Conductor cross section, max. (IEC)

mm2

2 × 240

2 × 240

2 × 240

4 × 240

4 × 240

4 × 240

DC link connection

DCP, DCN



M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

  • Conductor cross section, max. (IEC)

mm2

2 × 240

2 × 240

2 × 240

4 × 240

4 × 240

4 × 240

PE/GND connection



M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

M12 screw

  • Conductor cross section, max. (IEC)

mm2

3 × 240

3 × 240

3 × 240

6 × 240

6 × 240

6 × 240

Cable length, max.

between Power Module and motor















  • When compliant with categories C2 and C3 according to EN 61800-3
    shielded

m (ft)

100

100

100

100

100

100

  • When non-compliant with the limit values for RI suppression and without output reactor or dv/dt filter
    unshielded

m (ft)

200

200

200

200

200

200

  • When non-compliant with the limit values for RI suppression with output reactor or dv/dt filter
    shielded/unshielded

m (ft)

300/450

300/450

300/450

300/450

300/450

300/450

Degree of protection



IP20

IP20

IP20

IP20

IP20

IP20

Dimensions















  • Width

mm (in)

452

452

452

548

548

548

  • Height

mm (in)

1447

1447

1447

1696

1696

1696

  • Depth

mm (in)

327.5

327.5

327.5

393

393

393

Frame size



GX

GX

GX

HX

HX

HX

Weight, approx.

kg (lb)

101

102

107

155

155

157

Minimum size of control cabinet for installation of a Power Module















  • Width

mm (in)

No specifications

No specifications

No specifications

800

800

800

  • Height

mm (in)

No specifications

No specifications

No specifications

2000

2000

2000

  • Depth

mm (in)

No specifications

No specifications

No specifications

600

600

600



1) Rated power of a typical 4-pole standard induction motor based on the base-load current IL or IH at 400 V 3 AC/50 Hz (kW) or 460 V 3 AC/60 Hz (hp).

2) The base-load current IL is based on the duty cycle for low overload (LO).

3) The base-load current IH is based on the duty cycle for high overload (HO).

4) The input current depends on the motor load and line impedance and applies for a line impedance corresponding to uK = 1 %. The rated input currents apply for a load at rated power (based on Irated) – these current values are specified on the rating plate.

5) 10 ms value from current-time characteristic for reliable tripping of installed protection devices.

Note:

If the minimum short-circuit current is not reached, the activation time of the fuses is increased, which can lead to damage.
