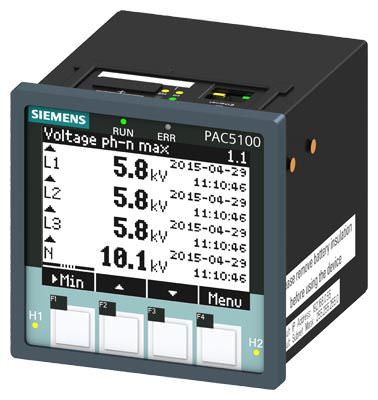

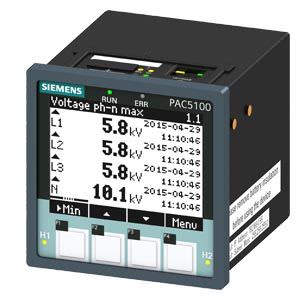

7KM PAC5100 measuring device

The 7KM PAC measuring devices are used to measure and display all relevant system parameters in low-voltage power distribution. They can be used for both single-phase and multi-phase measurements in 3 and 4-conductor power supply systems (TN, TT, IT).

They record energy values for main distribution boards, electrical branches or individual loads precisely and reliably, and supply key measured values for assessment of the state of the plant and the quality of the power supply.

The 7KM PAC5200 power quality measuring device has an integrated Modbus TCP protocol interface via Ethernet and a web server for parameterization, visualization and data management.

Особенности


  • Simple mounting and commissioning
  • Intuitive operation via 4 function keys
  • integrated web server for parameterization, display and evaluation
  • 4 parameterizable LEDs
  • Worldwide use
    • International approvals
    • Developed and tested to European and international standards
  • Low mounting depth
  • Precise energy measurement
  • Versatile system integration
    • Integrated Ethernet interface
    • Multifunctional digital outputs
    • Limit monitoring
  • Can be directly connected to power supply networks up to 690 V AC (UL-L), CATIII without voltage transformer
  • Electrically isolated voltage inputs
  • Monitoring of plant status and power supply quality
    • Basic information for evaluating the power supply quality
    • Logging of plant history in the form of operation, control and system-related events
  • Energy counters for apparent energy, active energy, reactive energy as well as import, supply, inductive and capacitive
  • Comprehensive user-friendly indicators, such as user-defined displays, bar and status indicators
  • Measurement up to the 40th individual harmonic of current and voltage
