Область применения

With their numerous options, the SIMOTICS FD motor series can be used in all areas of industry. Paper, steel, energy, marine, chemical, water/wastewater are some examples here.

The available types of construction are IM B3, IM B35 and IM V1 according to EN 60034-7. IP55/IP54 is the standard degree of protection (IP23 for open-circuit ventilation).

The wide field of applications that can be addressed includes, for example, the following:

• Pumps
• Fan
• Compressors
• Cranes
• Propeller drives, bow thrusters
• Paper machines
• Winches
• Centrifuges
• Handling lines
• Conveyor belts
• Rolling mills
• Extruders

Обзор

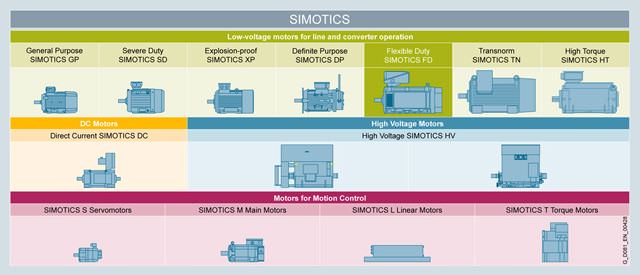

The SIMOTICS family of motors

With SIMOTICS, Siemens offers a comprehensive portfolio of electric motors. From energy-efficient, low-voltage motors through servomotors with high dynamic performance up to wellproven DC motors and powerful high-voltage motors. Innovative drive technology for all industries, applications and performance classes. Outstanding performance, quality, efficiency and compactness.

SIMOTICS – Low-voltage motors for mains-fed and converter-fed operation

SIMOTICS low-voltage motors for mains-fed and converter-fed operation are subdivided into seven segments depending on the particular application.

• General Purpose – SIMOTICS GP
  Motors for everyday applications in industry under standard environmental conditions.
• Severe Duty – SIMOTICS SD
  Motors with cast-iron housing for applications under harsh environmental conditions.
• Explosion Protected – SIMOTICS XP
  Motors for potentially explosive atmospheres.
• Definite Purpose – SIMOTICS DP
  Special motors, e.g. smoke extraction motors or built-in motors.
• Flexible Duty – SIMOTICS FD
  Converter-optimized motor series for flexible applications with higher outputs in the range of 200 kW to over 1600 kW, with various cooling methods. Water-cooled motors are also offered for mains-fed operation.
• Transnorm – SIMOTICS TN
  Motors with cast-iron housing with higher outputs in the range of 145 kW to 1250 kW.
• High Torque – SIMOTICS HT
  Permanent magnet synchronous motors for applications that require extremely powerful drives without gear unit, even at low speeds.

Performance features of the SIMOTICS FD series

The SIMOTICS FD series is characterized by the following features:

• Series of low-voltage motors optimized for converter-fed operation
• Three product lines
  • Air-cooled, enclosed version
  • Water-cooled version
  • Air-cooled, open version
• Wide output range from 125 kW to over 895 kW in frame sizes 315 and 355
• Rugged cast-iron housing

A wide range of water-cooled motors is also available for mains-fed operation.

The SIMOTICS FD motor series covers outputs from 200 kW and higher (at 1500 rpm), and is available in a version optimized for converter-fed operation with various cooling methods and as a water-cooled version for mains-fed operation.

This motor series has an extremely long service life, is rugged and ensures the highest availability thanks to various technical details. For instance, KTY 84-130 temperature sensors are integrated as standard in the winding as motor protection.

SIMOTICS FD motors are characterized by a very high output with a small frame size. The result of this is an extremely compact design that saves space in a number of industrial applications.

SIMOTICS FD motors are not only optimized in terms of their design, but also in terms of their efficiency, so they also contribute towards lower energy consumption.

The version optimized for converter-fed operation as part of a drive system is harmonized for operation with SINAMICS lowvoltage frequency converters. Together with SINAMICS, it forms an optimally harmonized drive system for variable-speed applications.

Overview of product lines

¹⁾ Cooling method IC37 (separately cooled using an external pipe system) on request.

²⁾ Other degrees of protection optionally available.

³⁾ Explosion-proof motors, Zones 2 and 22.

^*)M = Torque

VSD Variable Speed Drives (converter-fed operation)
DOL Direct On Line (mains-fed operation)

Особенности

The SIMOTICS FD motor series has been specifically developed for operation with SINAMICS converters. To supplement our portfolio in the low-voltage motor range, a water-cooled version for mains-fed operation has been created.

• The optimized efficiency results in lower operating costs.
• The high power density and compact design ensure low space requirements combined with low weight.
• A highly harmonized drive system is created as the motor isoptimally matched to the converter. For instance, it has optimized noise levels, the converter does not have to be derated and the temperature rise is low.
• The cast-iron housing and bearing plates are extremely rigid and rugged and can therefore be subjected to considerable stress. They have excellent vibration damping properties and are resistant to corrosion.
• The bearings are designed for maximum reliability, which results in good vibration characteristics, a long service life and low maintenance costs.
• The DURIGNIT IR 2000 insulation system with VPI or current UV impregnation results in high reliability, a long service life and high resistance to stress, for example, during starting orunder overload conditions.
• Due to the low noise emission level, the stringent requirements of occupational safety are fulfilled without the need for any additional measures.

Greater output

With SIMOTICS FD, we have increased the power density so that we offer higher outputs for the same frame size.

Optimized tuning for converter-fed operation

The new motor series has been optimized for operation on SINAMICS G120P, G130, G150, S120, S120CM and S150 converters with regard to converter output currents and voltage utilization.
Through the use of optimized pulse patterns and the new non-ribbed housing, the SIMOTICS FD and frequency converter system is noise optimized.

More flexibility

As a result of the new motor design, SIMOTICS FD motors fulfill the most exacting customer requirements in terms of variance and mounted options. For instance, the optimized motor design allows terminal boxes, separately driven fans and mounted coolers to be flexibly mounted as required and monitoring devices can be added easily.

Improved design

The optimized housing in a modern design has an attractive appearance and enhances functionality with the flexible, modular system. For instance, this is ensured by the optimized, easy to access terminal box that has been newly developed, with flexible terminal box position.

A wider range of applications

The motors are available in country and industry-specific versions, complying with the relevant regulations, standards and directives.

Технические данные

General technical specifications
