SINAMICS V60 servo drive Siemens

Обзор

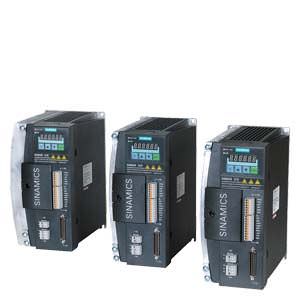

SINAMICS V60

The SINAMICS V60 servo drive is specially designed to control the feed axes in standard machine tool applications. The system is designed primarily for applications where cost effectiveness is the primary consideration. The key performance data of the drive are aligned to perfectly fit to the solution provided by the SINUMERIK 808D.

Функции


  • 4 versions with output currents of 4 A, 6 A, 7 A and 10 A
  • Supply voltage 220 V to 240 V 3 AC
  • 200 % overload capability
  • Pulse/direction interface (5 V difference signals) to the SINUMERIK 808D
  • Integrated motor brake switch
  • Alarm relay contact

Интеграция



The following components can be connected to the SINAMICS V60:

  • SINUMERIK 808D Turning PPU 141.1 horizontal
  • SINUMERIK 808D Milling PPU 141.1 horizontal
  • SIMOTICS S-1FL5 feed motor
  • TTL encoder in SIMOTICS S-1FL5 feed motor
  • Brake in SIMOTICS S-1FL5 feed motor

Чертеж

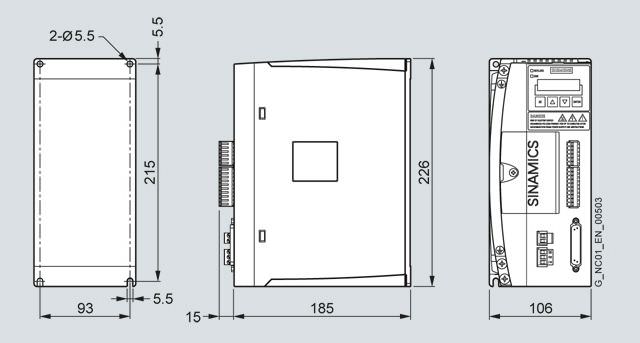

SINAMICS V60, 4 A/6 A/7 A

SINAMICS V60, 10 A

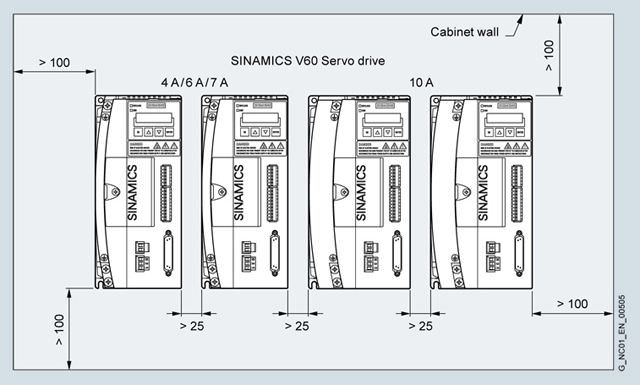

SINAMICS V60 – Mounting clearance

Особенности


  • Compact module with integrated infeed, inverter and closed-loop position control for one feed axis
  • No cooling fans needed thanks to large heat sink made of die-cast aluminum
  • Coated electronic modules
  • Commissioning and configuring without PC-based tools
  • Very simple commissioning using keys/7-segment display
  • Faster commissioning thanks to pre-configured motor data stored in the drive.
  • CE certified

Технические данные



Product name

SINAMICS V60



6SL3210-5CC14-0UA0

6SL3210-5CC16-0UA0

6SL3210-5CC17-0UA0

6SL3210-5CC21-0UA0

Input voltage

220 ... 240 V 3 AC -15 %/+10 %

Input frequency

50 … 60 Hz ± 10 %

Infeed

Non-stabilized

Electronics power supply

24 V DC -15 %/+20 %

24 V DC supply

0.8 A (1.4 A) combined with motors without brake (with brake)

Input voltage

Pulse/direction interface


  • Rated value

5 V DC

  • Frequency range

≤ 333 kHz

Cooling

Natural cooling

Ambient temperature


  • Storage/transport

-20  ... +80 °C

  • Operation

0  ... 45 °C without derating,
> 45  ... 55  °C derating to 70 %

Air humidity

< 95 %

Site altitude

Up ... 1000 m without derating,
> 1000 ... 2000 m derating to 80 %

Conductor cross-section, max.

2.5 mm2

Connectable motors

SIMOTICS S-1FL5

Degree of protection

IP20

Encoder evaluation

TTL encoder with 2500 S/R (13  bit resolution through electronic multiplication)

Output current


  • Rated current Irated

4 A

6 A

7 A

10 A

  • Peak current Imax

8 A

12 A

14 A

20 A

Rated power Prated

0.8 kW

1.2 kW

1.4 kW

2 kW

Power loss

36 W

47 W

54 W

70 W

Cooling air required

0.005 m3/s

0.005  m3/s

0.005 m3/s

0.005 m3/s

Sound pressure level LpA (1 m)

< 45 dB

< 45 dB

< 45 dB

< 45 dB

Dimensions1)


  • Width

106 mm

106 mm

106 mm

123 mm

  • Height

226 mm

226 mm

226 mm

226 mm

  • Depth

200 mm

200 mm

200 mm

200 mm

Weight

2.63 kg

2.63 kg

2.63 kg

3.44 kg

Certification

CE



S/R = Signals/Revolution

1) Minimum distances: 25 mm between drive modules, 100 mm from other control cabinet components.
