SIMOTICS S-1FL5 feed motor Siemens

Обзор

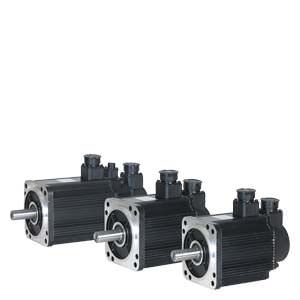

SIMOTICS S-1FL5 feed motors

The SIMOTICS S-1FL5 feed motor is optimized for operation with the SINAMICS V60 servo drive and provides the dynamic performance required by machine tools.

Функции


  • 4 motor types with 4 Nm, 6 Nm, 7.7 Nm and 10 Nm
  • Rated speed of 2000 rpm
  • Integrated TTL encoder with 2500 S/R (13 bit resolution through electronic multiplication of the SINAMICS V60)
  • Degree of protection IP54, natural cooling
  • Optional holding brake
  • Plain shaft or feather key

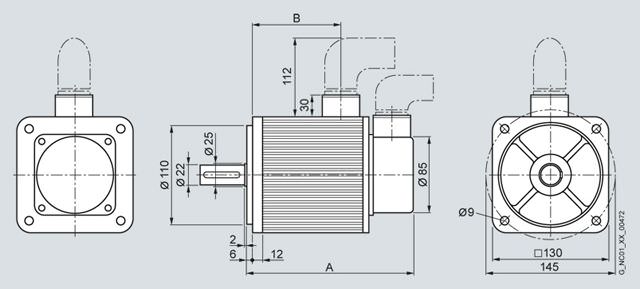

Чертеж



SIMOTICS S-1FL5 feed motor

Motor

Dimensions in mm

Type

A
without brake

A
with brake

B

1FL5060

163

205

80

1FL5062

181

223

98

1FL5064

195

237

112

1FL5066

219

261

136



Особенности


  • High performance rare earth magnet material
  • Design in IP54 degree of protection and rugged style connectors
  • Maximum flexibility due to variants with/without brake and plain shaft/feather key

Технические данные



Product name

SIMOTICS S-1FL5 feed motors



1FL5060-…

1FL5062-…

1FL5064-…

1FL5066-…

Type of motor

Synchronous motor

Rated speed

2000 rpm

Encoder

TTL encoder with 2500 S/R

Infeed

Non-stabilized

Type of construction in
accordance with EN 60034-7
(IEC 60034-7)

IM B5 (IM V1, IM V3)

Degree of protection in accordance
with EN 60034-5
(IEC 60034-5)

IP54

Cooling

Natural cooling

Shaft end in accordance with
DIN 748-3 (IEC 60072-1)

Plain shaft/Shaft key (C type)

Paint finish

Black

Insulation of the stator winding
in accordance with EN 60034-1 (IEC 60034-1)

Temperature class 130 (B)

Ambient temperature


  • Storage/transport

-20 ... +80 °C

  • Operation

0 ... 45 °C without derating, > 45 ... 55 °C derating to 70 %

Torque


  • Static torque Mrated

4 Nm

6 Nm

7.7 Nm

10 Nm

  • Torque, max. Mmax
    (converter)

8 Nm

12 Nm

15.4 Nm

20 Nm

Rated power

0.8 kW

1.2 kW

1.5 kW

2 kW

Static current

4 A

6 A

7 A

10 A

Rated speed

2000 rpm

2000 rpm

2000 rpm

2000 rpm

Efficiency η

91.1 %

93.3 %

92.0 %

93.7 %

Moment of inertia


  • Without brake

11.01 × 10-4 kgm2

15.44 × 10-4 kgm2

20.17 × 10-4 kgm2

25.95 × 10-4 kgm2

  • With brake

12.68 × 10-4 kgm2

17.11 × 10-4 kgm2

21.84 × 10-4 kgm2

27.62 × 10-4 kgm2

Shaft height

65 mm

65 mm

65 mm

65 mm

Dimensions


  • Edge dimension

130 mm

130 mm

130 mm

130 mm

  • Length (without/with brake)

221/263 mm

239/281 mm

253/295 mm

277/319 mm

Weight (without/with brake)

6/8.6 kg

7.6/10.2 kg

8.6/11.2 kg

10.6/13.2 kg

Certification

CE



S/R = Signals/Revolution
