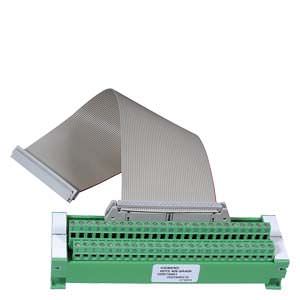

Terminal strip converter

The SINUMERIK 808D PPU 14x/SINUMERIK 808D ADVANCED PPU 16x feature 24 digital PLC inputs and 16 digital PLC outputs which can be connected directly using screw-clamps on the PPU.

In addition, the PPU 14x/PPU 16x feature 48 digital PLC inputs and 32 digital PLC outputs which can be connected via 2 terminal strip converters.

This allows the connection of process signals directly in the cabinet with significantly reduced wiring efforts.

Дизайн

Connection of PLC process signals

• Screw-clamps
  • 24 digital inputs
  • 16 digital outputs

Connection to PPU

• Ribbon cable, 50-pole
• Insulation displacement connectors

Cabinet mounting

• Standard mounting rails

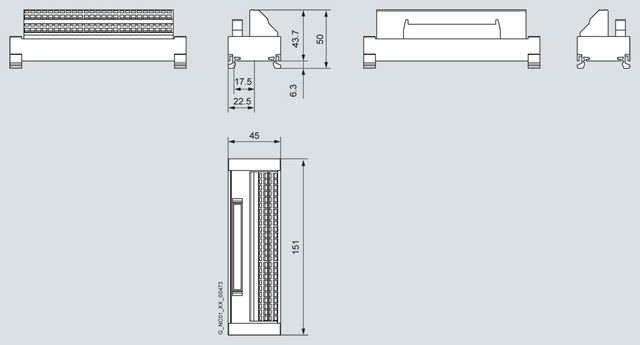

Чертеж

Terminal strip converter
