SINAMICS V20 Siemens

Обзор

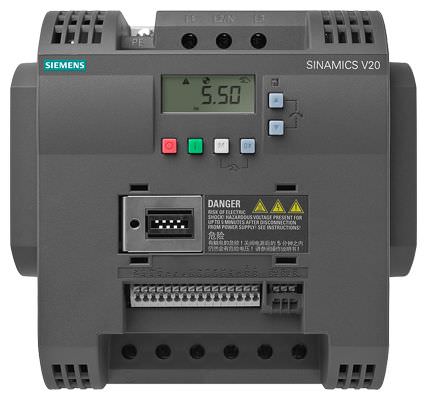

SINAMICS V20 inverter

With its compact SINAMICS V20, the basic performance inverter, Siemens offers a simple and cost-effective drive solution for the machine tool spindle application. SINAMICS V20 sets itself apart with its quick commissioning times, ease of operation, robustness and cost-efficiency.

Функции

6 versions of SINAMICS V20 for spindle solution with 3.0 kW, 4.0 kW, 5.5 kW, 7.5 kW, 11 kW or 15 kW
Supply voltage 380 V ... 480 V 3 AC (-15 % ... +10 %)
150 % rated output current for 60 s
Analog +10 V setpoint interface to the CNC system
Optional memory card for data backup
Optional Braking Module and braking resistor. Integrated braking module from 7.5 kW.

Интеграция

The following components can be connected to the SINAMICS V20:

SINUMERIK 802C
SINUMERIK 808D Turning
SINUMERIK 808D Milling
SINUMERIK 808D ADVANCED T
SINUMERIK 808D ADVANCED M
SINUMERIK 828D BASIC
SINUMERIK 828D
SIMOTICS GP 1LE series high-efficiency spindle motor

((neue Grafik))

Connection overview of SINAMICS V20 drive system

	Connector with pin contacts
	Connector with socket contacts
	Exposed core ends
	Cable is not included in the scope of delivery. It must be provided by the customer.

Чертеж

((neue Grafik))

SINAMICS V20

Dimensions in mm

	Width		Height		Depth
Frame size	W1	W2	H1	H2	D
FSB	127	140	160	135	134.5
FSC	170	184	182	140	169
FSD	223	240	206.5	166	172.5

Особенности

Easy to install

Push-through
Wall mounting side-by-side – possible for both
Integrated braking chopper for 7.5 kW to 15 kW

Easy to use

Parameter loading without power supply
Integrated application and connection macro
Keep running mode for uninterrupted operation
Wide voltage range, advanced cooling design and coated PCBs increase robustness

Easy to save money

ECO mode for V/f, V²/f
Hibernation mode
DC coupling

Технические данные

		SINAMICS V20
	6SL3210-...	5BE23-0.V0	5BE24-0.V0	5BE25-5.V0	5BE27-5.V0	5BE31-1.V0	5BE31-5.V0
System operating voltage		380 V ... 480 V 3 AC (-15 % ... +10 %)
Input frequency		50 Hz/60 Hz
Degree of protection		IP20
Connectable motors		Standard motors
Output frequency
Control type Vector		0 ... 599 Hz
Power factor cos φ		0.7
Efficiency η		0.97
Overload capability		150 % rated output current for 60 s
Electromagnetic compatibility		Integrated line filter class A acc. to EN 55011
Ambient temperature
Operation		0 ... 40 °C without derating 40 ... 60 °C with derating
Storage		-40 ... +70 °C
Relative humidity		< 95 %, condensation not permissible
Cooling		Internal ventilation, power units with increased air cooling by built-in fans
Cooling clearance, min.
Top		100 mm
Bottom		100 mm
Side		0 mm
Front		0 mm
Installation altitude		Up to 1000 m above sea level without derating > 1000 ... 4000 m with derating
Compliance with standards		UL, CE, c-tick, KCC
Certification		CE, UL, KC
Output current at 400 V 3 AC 50 Hz		7.3 A	8.8 A	12.5 A	16.5 A	25 A	31 A
Rated power		3 kW	4 kW	5.5 kW	7.5 kW	11 kW	15 kW
Input current Rated current		7.3 A	8.8 A	12.5 A	16.5 A	25 A	31 A
Line supply connection U1/L1, V1/L2, W1/L3		Screw terminal	Screw terminal	Screw terminal	Screw terminal	Screw terminal	Screw terminal
Conductor cross-section		2.5 ... 4.0 mm²	2.5 ... 4.0 mm²	4.0 ... 10 mm²	6.0 ... 10 mm²	10 ... 12 mm²	10 ... 12 mm²
PE connection		On housing with M5 screw
Motor cable length, max.
Shielded		25 m
Unshielded		50 m
Dimensions
Width		140 mm	140 mm	184 mm	240 mm	240 mm	240 mm
Height		160 mm	160 mm	182 mm	206.5 mm	206.5 mm	206.5 mm
Depth		164.5 mm	164.5 mm	169 mm	172.5 mm	172.5 mm	172.5 mm
Weight, approx.		2.1 kg	2.1 kg	3 kg	5 kg	5 kg	5 kg

Дальнейшая информация

For the whole range of SIMOTICS GP 1LE standard motors please refer to the DT Configurator at:

http://www.siemens.com/motors
http://www.siemens.com/industrymall
