SIPLUS Y-Link for S7-400H Siemens

Область применения



The Y-Link is a transceiver for the transition from a redundant PROFIBUS master system to a single-channel PROFIBUS DP master system. It is used to connect devices with a single PROFIBUS DP interface as switched I/O to S7-400H.

Обзор


  • Bus coupler for transition from a redundant PROFIBUS DP master system to a single-channel PROFIBUS DP master system
  • For connection of devices with only one PROFIBUS DP interface to the redundant PROFIBUS DP master system of the SIMATIC S7-400H

Note:

SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.

Technical documentation on SIPLUS can be found here:
http://www.siemens.de/siplus-extreme

Дизайн

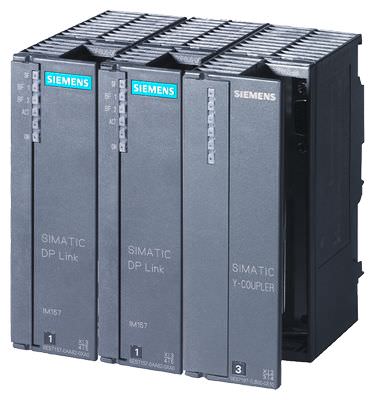

The Y-link comprises:

  • 2 IM 153-2 High Feature Outdoor interface modules
  • 1 Y coupler
  • 1 BM IM/IM bus module
  • 1 BM Y-coupler bus module

Snapped on mounting rails for setup with active bus modules.

Configuration options and limitations

A redundant PROFIBUS DP master system can be extended by means of Y links in the following way:

  • The number of Y links on a redundant DP master system is only limited by the maximum number of stations. The maximum number of connectable slaves depends on the length of the user data and configuration message frames. The total length of each may not exceed 244 bytes (see slave technical data). Generally, the following applies:
    • Max. 64 stations in the lower-level DP master system
    • Max. 236 slots in the lower-level DP master system
  • Y link configuration and user data message frames comprise message frame contents of the lower-level slaves. The maximum frame length is therefore 244 bytes.
  • Direct communication and equidistance not possible in the lower-level master system

Функции



Y link

  • Transmission rates for the redundant master system:
    9.6 Kbit/s to 12 Mbit/s
  • Bumpless switchover of the redundant PROFIBUS DP master system''s active channel.
  • Supports system changes on a SIMATIC S7-400H during operation
  • Diagnostics via LEDs and the user program

Y coupler

  • Transmission rates for the lower-level master system (independent of redundant DP master system):
    187.5 Kbit/s to 12 Mbit/s
  • Electrical isolation between lower-level DP master system and power supply via the coupler
  • IP20 degree of protection

Principle of operation

The Y link maps the lower-level DP master system on the redundant PROFIBUS DP master system as a switched PROFIBUS DP slave .

The Y coupler and the lower-level DP master system form an independent bus system and operate decoupled from the redundant bus system.

The Y link as a DP slave on the redundant DP master system acts as a proxy for the stations on the lower-level DP master system with regard to data.

Configuration

The Y link can be configured with STEP 7 as of Version 5.4. It is not necessary to configure the Y coupler.

When STEP 7 calculates the bus parameters, the stations connected on the lower-level DP master system as well as the Y link itself are taken into account.

Parameter assignment of the DP slaves

The redundant DP master system assigns the parameters for the DP slaves in the lower-level DP master system via the Y link.

Технические данные



Order number

6AG1153-2BA02-7XB0

SIPLUS_IM153-2

General information



Vendor identification (VendorID)

801Eh

Supply voltage



Rated value (DC)

  • ● 24 V DC

Yes

permissible range (ripple included), lower limit (DC)

20.4 V

permissible range (ripple included), upper limit (DC)

28.8 V

external protection for power supply lines (recommendation)

2,5 A

Mains buffering



  • ● Mains/voltage failure stored energy time

5 ms

Input current



Current consumption, max.

600 mA

Inrush current, typ.

3 A

I²t

0.1 A²·s

Output voltage



Rated value (DC)

5 V

Output current



for backplane bus (5 V DC), max.

1.5 A

Power loss



Power loss, typ.

5.5 W

Address area



Addressing volume



  • ● Inputs

244 byte

  • ● Outputs

244 byte

Hardware configuration



Number of modules per DP slave interface, max.

12

Time stamping



Accuracy

1 ms; 1ms at up to 8 modules; 10ms at up to 12 modules

Number of message buffers

15

Messages per message buffer

20

Number of stampable digital inputs, max.

128; Max. 128 signals/station; max. 32 signals/slot

Time format

RFC 1119

Time resolution

0.466 ns

Time interval for transmitting the message buffer if a message is present

1 000 ms

Time stamp on signal change

rising / falling edge as signal entering or exiting

Interfaces



Interface physics, RS 485

Yes

Interface physics, FOC

No

PROFIBUS DP



  • ● Node addresses

1 to 125 permitted

  • ● automatic detection of transmission rate

Yes

  • ● Output current, max.

70 mA

  • ● Transmission rate, max.

12 Mbit/s

  • ● Transmission procedure

RS 485

  • ● SYNC capability

Yes

  • ● FREEZE capability

Yes

  • ● Direct data exchange (slave-to-slave communication)

Yes; Sender

  • ● Connector type

9-pin sub D

1. Interface



DP slave



  • ● GSD file

SI04801.GSG

  • ● automatic baud rate search

Yes

Protocols



Bus protocol/transmission protocol

PROFIBUS DP to EN 50170

Isolation



Isolation tested with

Isolation voltage 500 V

Degree and class of protection



Degree of protection acc. to EN 60529

  • ● IP20

Yes

Standards, approvals, certificates



CE mark

Yes

UL approval

Yes; File E239877

FM approval

Yes; CofC 3028431

RCM (formerly C-TICK)

Yes

KC approval

Yes

EAC (formerly Gost-R)

Yes

Ambient conditions



Ambient temperature during operation



  • ● min.

-40 °C; = Tmin

  • ● max.

70 °C; = Tmax; 60 °C @ UL/cUL use

Extended ambient conditions



  • ● relative to ambient temperature-atmospheric pressure-installation altitude

Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m)
