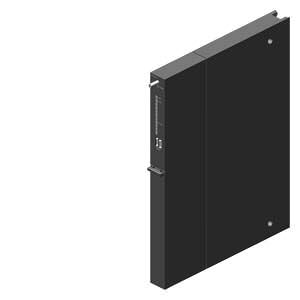

IM 461-1 Siemens

Область применения

The IM 461-1 interface module is intended for use as a receive IM for central connection over short distances of up to 1.5 m. It receives data from the P-bus only.

The IM 461-1 interface module is intended for use only in association with the IM 460-1 interface module (in the central controller).

Обзор

• Receive interface connection for centralized extension up to 1.5 m
• Transmission of P bus
• With voltage supply for expansion units
• Can be plugged into expansion unit
• Can only be used with IM 460-1

Дизайн

The IM 461-1 interface module can be inserted into the following expansion modules:

• UR1,
• UR2,
• ER1 and
• ER2.

It supplies the modules in its expansion unit with the 5 V supply voltage (max. 5 A). The power supply module is omitted here.

The module has:

• 3 LEDs for indicating faults.
• 1 interface (input) for connecting the 468-3 connecting cable of the upstream interface module.
• Coding switch for setting the number of the rack.

Технические данные

Дальнейшая информация

Brochures

Information material for downloading can be found in the Internet:

http://www.automation.siemens.com/infocenter
