Training case, single-axis drive, modular Siemens

Обзор



Training case, single-axis drive, modular

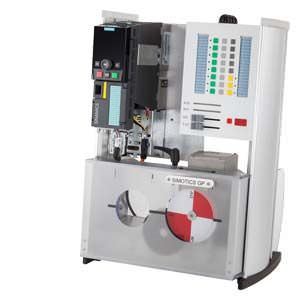

The single-axis drive modular training case has been developed

  • for customer presentations
  • for training
  • for laboratory tests

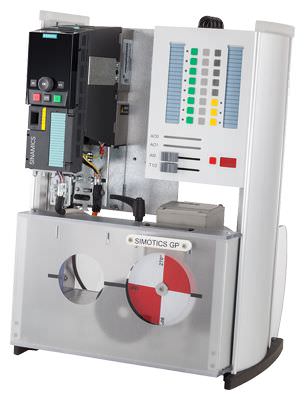

The basic version contains the following components:

  • SINAMICS PM340 Power Module, 0.12 kW (0.16 hp)
  • SINAMICS CU240E‑2 PN‑F Control Unit
  • IOP operator panel
  • SIMOTICS GP induction motor with HTL encoder
  • Simulator panel

The following expansions are possible:

  • Second Power Module
  • Various Control Units
  • Servo module with load equipment and encoder system
  • SIMATIC module

The single-axis drive modular training case is supplied in the form of a trolley case. It is available in the basic and compact basic variants. The basic compact variant cannot be expanded with the SIMATIC module.

Технические данные



Training case, single-axis drive, modular

Basic

Compact basic

6AG1067-2AA00-0AA3

6AG1067-2AA00-0AB8

Supply voltage

230 V 1 AC

230 V 1 AC

Dimensions





  • Width

560 mm (22.05 in)

420 mm (16.54 in)

  • Height

695 mm (27.36 in)

695 mm (27.36 in)

  • Depth

325 mm (12.80 in)

325 mm (12.80 in)

Weight, approx.

28 kg (61.7 lb)

25 kg (55.1 lb)



Дополнительно

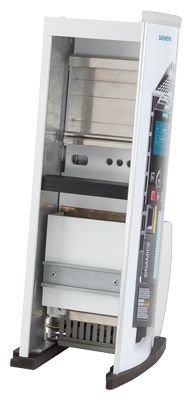

Power Module

The Power Module expands the single-axis drive modular training case with the functionality of a second inverter. The PM340 Power Module is already pre-wired on the supply side.

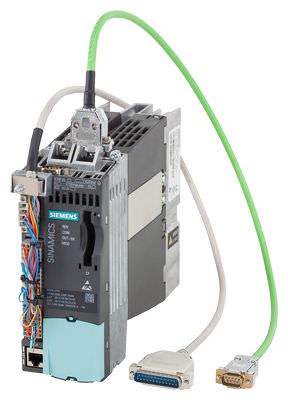

Control Units

The additional Control Units transform the single-axis drive modular training case into a universal training case for SINAMICS and SIMOTION drive technology. The I/O signals are wired to SUB‑D connectors.

SINAMICS G120 Control Units

CU250S‑2 PN

CU240E‑2 DP‑F

CU240E‑2 PN‑F

CU230P‑2 DP‑F

CU230P‑2 CAN

SINAMICS S120 Control Units

CU310‑2 DP

CU310‑2 PN

SIMOTION D Control Unit

D410‑2

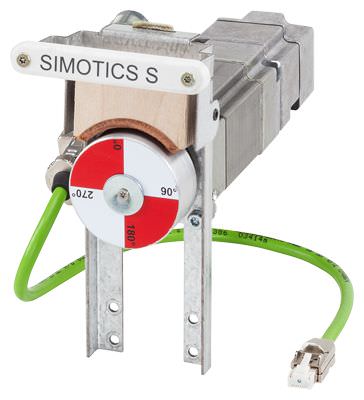

Servo module

The servo module expands the single-axis drive modular training case with servo functionality. The servo module comprises a SIMOTICS S-1FK7 servo motor with load equipment and a mounted mechanical system. The encoder cable is integrated into the servo module. The power cable is already included in the scope of supply of the SINAMICS modular training case.

SIMATIC module

The SIMATIC module expands the single-axis drive modular training case in the basic variant. The SIMATIC module supports integration of the single-axis drive modular training case into the SIMATIC and TIA world. The SIMATIC S7‑300/-1200/-1500 automation systems can be integrated.
