SIMOTION D425-2 DP/PN training case Siemens

Область применения

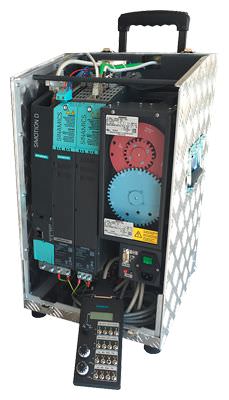

SIMOTION D4x5-2 DP/PN training case

The training case can be used for training in the SIMOTION D Motion Control System. It is also suitable for testing purposes in the laboratory.

Дизайн


  • Case optimized in terms of weight and volume
  • Set up complete with castors and ready for connection
  • Regenerative feedback not possible
  • Drive system comprising:
    • SIMOTION D425-2 DP/PN controller with TB30 Terminal Board
    • Smart Line Module 5 kW (training version)
    • Double Motor Module 3/3 A
    • SIMOTICS 1FK7022‑5AK71‑1AG3 synchronous servomotor with incremental encoder sin/cos 1 Vpp via SMC20
    • SIMOTICS 1FK7022‑5AK71‑1LG3 synchronous servomotor with absolute encoder IC2048S/R and DRIVE-CLiQ interface
    • Reference disks for position monitoring
  • Control box for setpoint/actual-value linkage via terminals
  • Prefabricated connection option for external motors, e.g., asynchronous motor
  • Intermediate connector for quick connection of a CU320-2 in lateral mounting bracket

The training case is supplied ready-to-use with a demo project and MultiAxes Package license on CompactFlash card and documentation. The scope of supply includes the SCOUT and SCOUT TIA engineering software.

Технические данные



Degree of protection to DIN VDE 0470 Part 1/ EN 60529/IEC 529

IP20

Supply voltage 1)

230 V 1 AC/50 Hz



Via power supply adapter 115 V 1 AC (USA; not supplied in the package)

Dimensions in mm ( in) (W × H × D)

320 × 650 × 330 (12.60 x 25.59 x 12.99

Weight, approx.

34 kg (74.9 lb)



1) The connection conditions of the respective network operator shall be observed.

Дополнительно



Description

Article No.

Power supply adapter 110 V/230 V

6AG1064-1AA02-0AA0
