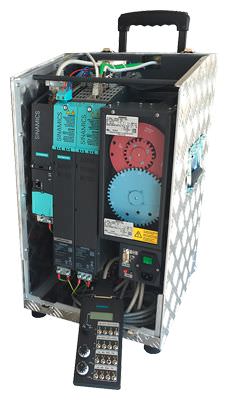

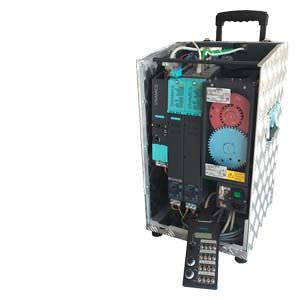

SINAMICS S120 training case with CU320-2 Control Unit

The SINAMICS S120 training case is used to teach students to use and understand the SINAMICS S120 drive system. It is suitable for direct customer presentations as well as for tests in technical departments. The SIMOTION D425‑2 DP/PN upgrade kit can be used to convert the SINAMICS S120 training case to a SIMOTION D training case.

The case is optimized in terms of weight and volume and is assembled complete with castors and ready for connection.
It contains the following components:

  • SINAMICS CU320‑2 DP or CU320‑2 PN Control Unit with TB30 Terminal Board
  • SINAMICS Smart Line Module 5 kW
  • SINAMICS Double Motor Module 3 A
  • SIMOTICS 1FK7022‑5AK71‑1AG3 synchronous servomotor with incremental encoder sin/cos 1 Vpp via SMC20
  • SIMOTICS 1FK7022‑5AK71‑1LG3 synchronous servomotor with absolute encoder IC2048S/R and DRIVE-CLiQ interface
  • Reference discs for position monitoring
  • Control box for setpoint/actual-value linkage via terminals
  • Prefabricated connections for an external motor (e.g., asynchronous motor)

The SINAMICS S120 training case is supplied ready-to-use with a demo project on the CompactFlash card and documentation.

Технические данные



SINAMICS S120 training case

6ZB2480-0CM00
6ZB2480-0CN00

Supply voltage

230 V 1 AC 50 Hz

115 V 1 AC 60 Hz with line adapter (not included in scope of supply)

Degree of protection

IP20

Dimensions



  • Width

320 mm (12.60 in)

  • Height

650 mm (25.59 in)

  • Depth

330 mm (12.99 in)

Weight, approx.

30 kg (66.1 lb)
