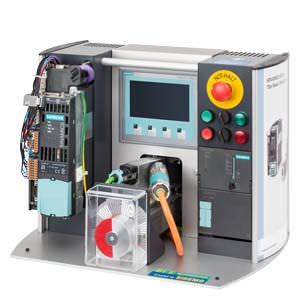

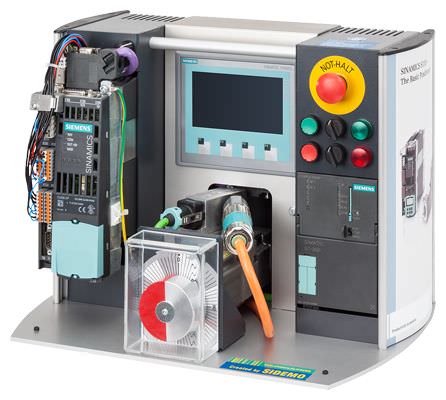

SINAMICS S110 training case

The SINAMICS S110 training case is a convincing demonstration system for all situations thanks to its compact design. It vividly demonstrates easy and accurate positioning of an axis by means of the integrated basic positioner (EPos). The integrated touch panel allows for the specification of setpoint values via the PROFIBUS or CAN bus interface 1) The travel adapter plug and replaceable side panels (German/English) included in the scope of supply enable the unit to be used worldwide.

It contains the following components:

  • SINAMICS S110 servo drive
    • PM340 Power Module, 0.37 kW (0.5 hp)
    • CU305 DP Control Unit
  • SIMATIC S7‑300 controller
  • SIMATIC Touch Panel TP177B, 4.3''’ TFT Widescreen Color
  • SIMOTICS S‑1FK7 synchronous motor

The SINAMICS S110 training case is supplied preprogrammed in the form of a stackable Tanos Systainer case of size 4.

1) Training case with CAN Bus interface on request.

Технические данные



SINAMICS S110 training case

6AG1067-1AA18-0AA0

Supply voltage

230 V 1 AC

Dimensions



  • Width

360 mm (14.17 in)

  • Height

280 mm (11.02 in)

  • Depth

270 mm (10.63 in)

Weight, approx.

13 kg (28.67 lb)
