Input Expansions Siemens

Обзор

With the input expansions

• 3SK1220 sensor expansion and
• 3SK1230 power supply

the 3SK1 Advanced basic units can be made more flexible.

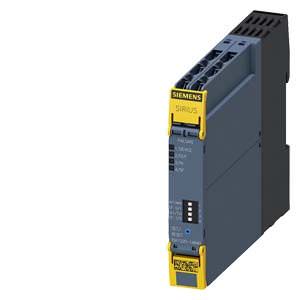

3SK1220 input expansion

The 3SK1220 input expansion allows additional sensors to be integrated easily and flexibly. The device monitors two 1-channel sensors or one 2-channel sensor, whatever their output technology (floating/single-ended).

Note:

The 3SK1220 sensor expansion can only be connected to the 3SK1 Advanced basic units using a 3ZY12 device connector.

3SK1230 power supply

The 3SK1230 power supply makes the 3SK1 devices universally usable, whatever control supply voltage is to be used.

Both devices can be combined with the 3SK112 basic units in the Advanced series without the need for wiring.

Note:

Alongside the 3ZY12 device connector, the 3SK1230 power supply can also be wired to act as a power supply for 3SK1 devices.

Особенности

• A wide voltage range of 110 ... 240 V AC/DC allows the devices to be used worldwide
• Low stock keeping due to little variance
• Flexible expansion of the number of sensors without the need for additional wiring between the devices
• Perfect adaptation of the number of inputs to suit the application
• Universal use thanks to the wide range of adjustable parameters for sensor expansion (parameters as for 3SK1 Advanced basic units)
